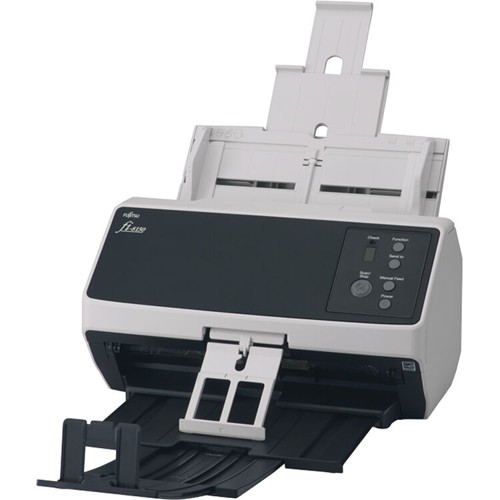

Ricoh FI-8170 Image Scanner
$1,396.00
- Scans big volumes with “Automatic Separation Control”
- “Paper Protection” function using Image Monitoring technology and sound technology
- Optimized high-quality image data with “PFU Clear Image Capture”
- Scans variety of documents including passports and booklets
- Color LCD Panel for easy operation
Ricoh FI-8170 Image Scanner
Ricoh FI-8170 offers an innovative and superior scanning experience. Compact and reliable, the scanner achieves scan speeds of 70 ppm/140 ipm (200/300 dpi, color, A4 portrait), loads up to 100 sheets at a time, and comes equipped with a capability of scanning up to as many as 10,000 sheets a day.
Why choose fi-8170 Image Scanner?
- Scans big volumes with “Automatic Separation Control”
- “Paper Protection” function using Image Monitoring technology and sound technology
- Optimized high-quality image data with “PFU Clear Image Capture”
- Scans variety of documents including passports and booklets
- Color LCD Panel for easy operation
Specifications
| Product Name / SKU | fi-8170 / PA03810-B055 | |
|---|---|---|
| Scanner Type | ADF (Automatic Document Feeder) / Manual Feed, Duplex | |
| Scanning Speed*1 (A4 Portrait) (Color*2/Grayscale*2/Monochrome*3) |
Simplex | 70 ppm (200/300 dpi) |
| Duplex | 140 ipm (200/300 dpi) | |
| Image Sensor Type | CIS x 2 (front x 1, back x 1) | |
| Light Source | RGB LED x 2 (front x 1, back x 1) | |
| Optical Resolution | 600 dpi | |
| Output Resolution*4 (Color / Grayscale / Monochrome) |
50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*5 | |
| Output Format | Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit | |
| Background Colors | White / Black (selectable) | |
| Document Size | Maximum*6 | 215.9 x 355.6 mm (8.5 x 14 in.) |
| Minimum | 48 x 50 mm (1.9 x 2 in.) | |
| Long Page Scanning*7 | 6,096 mm (240 in.) | |
| Paper Weight (Thickness) | Paper | 20 to 465 g/m² (5.3 to 124 lb)*8 |
| Booklet | Less than 7 mm (0.276 in.)*9 | |
| Plastic Card | 1.4 mm (0.055 in.) or less*10 | |
| ADF Capacity*11*12 | 100 sheets (A4 80 g/m² or Letter 20 lb) | |
| Expected Daily Volume*13 | 10,000 sheets | |
| Multifeed Detection | Overlap detection (Ultrasonic sensor), Length detection | |
| Paper Protection | Image monitoring, Sound detection (iSOP)*14 | |
| Interface | USB | USB 3.2 Gen1x1 / USB 2.0 / USB 1.1 |
| Ethernet | 10BASE-T, 100BASE-TX, 1000BASE-T | |
| Power Requirements | AC 100V – 240V 50/60 Hz | |
| Power Consumption | Operating Mode | 28 W or less / 17 W (Eco mode) |
| Sleep Mode | LAN: 2.0 W or less USB: 1.4 W or less |
|
| Auto Standby (Off) Mode | 0.2 W or less | |
| Operating Environment | Temperature | 5 to 35 °C (41 to 95 °F) |
| Relative Humidity | 15 to 80% (Non-condensing) | |
| Environmental Compliance | ENERGY STAR, RoHS | |
| Dimensions (W x D x H)*15 | 300 x 170 x 163 mm (11.8 x 6.7 x 6.4 in.) | |
| Weight | 4 kg (8.8 lb) | |
| Supported Operating System | Windows 11*16, Windows 10*16, Windows Server 2025, Windows Server 2022, Windows Server 2019, Windows Server 2016, macOS*17, Linux (Ubuntu)*17 | |
| Software / Drivers*19 | PaperStream IP Driver (TWAIN/TWAIN x64/ISIS™), WIA Driver*18, Image Scanner Driver for macOS (ICA)*18, Image Scanner Driver for Linux (SANE)*18, PaperStream Capture, PaperStream ClickScan, PaperStream NX Manager, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™, PaperStream Central Admin | |
| Image Processing Functions | Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge filler, Vertical streaks reduction, Background pattern removal, Cropping, Static threshold | |
| Included Items | ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM | |
Accessories
| Part Number | Description | |
|---|---|---|
| Consumables | ||
| Brake Roller | PA03810-0001 | Every 200,000 sheets |
| Pick Roller | PA03670-0002 | Every 200,000 sheets |
| Print Cartridge | CA00050-0262 | 4,000,000 printed characters |
| Options | ||
| Post Imprinter (FI-819PRB) | PA03810-D201 | Prints on the back of the document |
| Carrier Sheets | PA03360-0013 | Each package contains 5 carrier sheets |
| Photo Carrier Sheets | PA03770-0015 | Each package contains 3 carrier sheets |
| Booklet Carrier Sheet | PA03810-0020 | Each package contains 1 carrier sheets |
| PaperStream Capture Pro Scan Station (WG)*2 |
PA43404-A665 | PaperStream Capture Pro optional license |
| PaperStream Capture Pro | PA43404-B403 | One year license of PaperStream Capture Pro |
| PaperStream Capture Pro Premium | PA43404-B421 | One year license of PaperStream Capture Pro Premium |
